AC1000-M5_Air Triple-Link Unit (3 Combination Unit, F+R+L)_A Series Air Source Treatment Units_XMC (HUAYI) Pneumatic

A series of components including air filter, pressure reducing valve, oil mist and its combination components, The interface thread from M5 to G1, the reasonable structure of components to improve its performance, suitable for a variety of small, medium and large pneumatic system devices, can replace Japanese type's pneumatic components products.
  • AC1000-M5

  • XMC

  • AC1000-M5

Maxi. Working Pressure:
Ambient & Fluid Temperature:
Filter Precision:
Pressure Regulating Range:
Valve Type:
Availability:

001 900宽EN-A产品信息条


A Series Air Source Treatment Units


AC1000-M5 Triple-Link Unit (F+R+L)


Symbol       符号(二联件)-样本page006

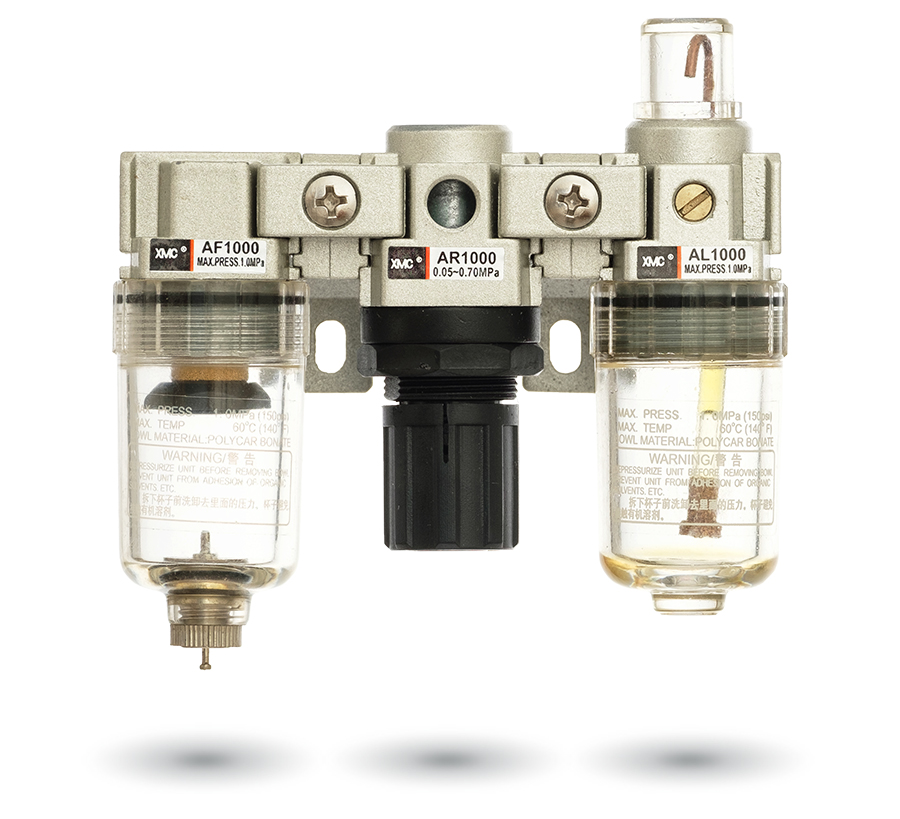

00 AC1000展示主图-官网详情900宽


 Overall Dimension Drawing (mm)

00尺寸图AC1000-2000 EN      AC1000~2000


AC2500~

5000

00尺寸图AC2500-5000 EN

Overall Dimension Sheet (mm)

Model Port Size (G) A B C D E F G H J K L P B (with Auto drain)
AC1000 M5 91 91 25.5 25 26 25 33 20 4.5 7.5 5

38.5

None
AC2000 1/8~1/4 140 122 38 40 57 30 50 24 5.5 8.5 5 50 145 *160
AC2500 1/4~3/8 181 158 38 53 61 41 64 35 7 11 7 70.5 172
AC3000 1/4~3/8 181 158 38 53 61 41 64 35 7 11 7 70.5 172
AC4000 3/8~1/2 238 191 41 70 66 50 84 40 9 13 7 88 196
AC4000-06 3/4 253 191 40.5 70 70 50 89 40 9 13 7 88 196
AC5000 3/4~1 300 268 48 90 76 70 105 50 12 16 10.5 115 273

*This size is for lever type auto drain.

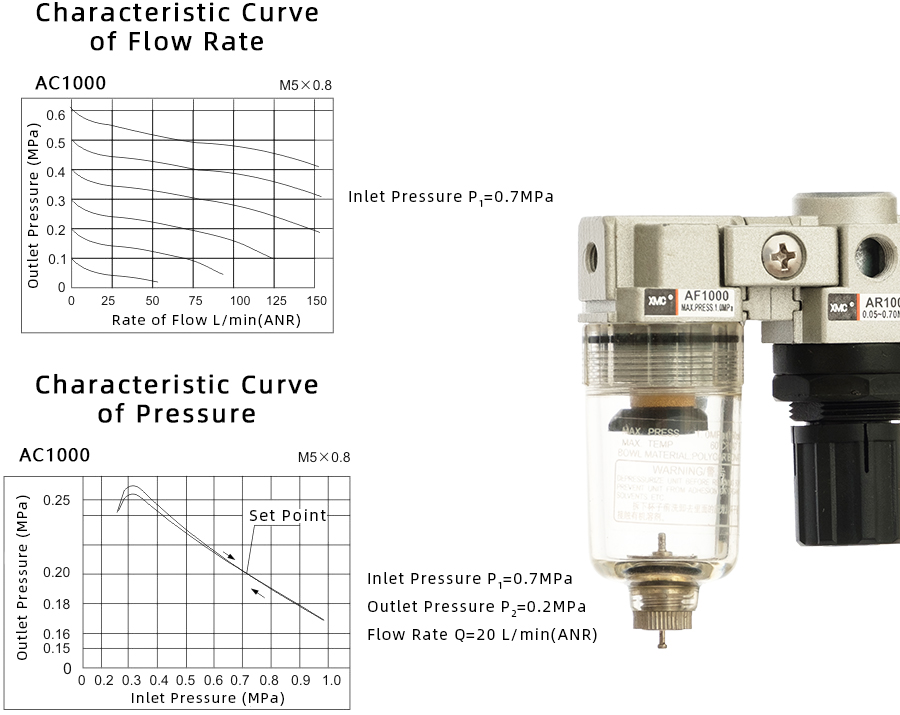

1 AC1000-特性曲线900宽EN


Features

A series of components including air filter, pressure reducing valve, oil mist and its combination components, The interface thread from M5 to G1, the reasonable structure of components to improve its performance, suitable for a variety of small, medium and large pneumatic system devices, can replace Japanese type's pneumatic components products.


Specification

Order No. AC1000-M5
Ensured Pressure Resistance

1.5MPa (15kgf/cm2)

Maximum Working Pressure

1.0MPa (10kgf/cm2)

Ambient and Fluid Temperature 5~60℃
*Filter Precision 25μm
Recommended Oil Use Turbine No.1 Oil ISOVG32
Container Material Polycarbonate
Protective Cover

AC1000~2000: None

AC2500~5000: Available

Pressure Regulating Range

AC1000: 0.05~0.7MPa (0.5~7kgf/cm2)

AC2000~5000: 0.05~0.85MPa (0.5~8.5kgf/cm2)

Valve Type With Overflow

*5, 50μm is available for optional.


Model Table

Model Specifications Accessories
Assembly

Note2) Rated

Flow (L/min)

Note3) Port

Size (G)

Pressure

Gauge

Size

Weight

(kg)

Bracket

Pressure

Gauge

Manual

Drain

Note1) Auto Drain

Filter Regulator Lubricator
AC1000-M5 None AF1000 AR1000 AL1000 90 M5 1/16 0.26 Y10L G27-10-R1
AC2000-01 AC2000-01D AF2000 AR2000 AL2000 500 1/8 1/8 0.74 Y20L G36-10-01
AC2000-02 AC2000-02D 1/4
AC2500-02 AC2500-02D AF3000 AR2500 AL3000 1500 1/4 1/8 1.04 Y30L
AC2500-03 AC2500-03D 3/8
AC3000-02 AC3000-02D AF3000 AR3000 AL3000 2000 1/4 1/8 1.18 Y30L
AC3000-03 AC3000-03D 3/8
AC4000-03 AC4000-03D AF4000 AR4000 AL4000 4000 3/8 1/4 2.14 Y40L G46-10-02
AC4000-04 AC4000-04D 1/2
AC4000-06 AC4000-06D AF4000-06 AR4000-06 AL4000-06 4500 3/4 1/4 2.47 Y50L
AC5000-06 AC5000-06D AF5000 AR5000 AL5000 5000
3/4 1/4
3.82
Y50L
AC5000-10 AC5000-10D 1

Note1) Tere are 2 types of auto drain for AC2000, pulsed type and lever type: "D" Means normal auto drain, pulsed type; "D2"means lever type.

            The normal auto drain for AC2500~AC5000 is lever type, but the float type of auto drain is available for choose. Please check the details from

            AUTO DRAIN webpage, which is classified in Accessories.

Note2) The inlet pressure is 0.7MPa (7.1kgf/cm2), the set pressure is 0.5MPa (5.1kgf/cm2).

Note3) Rc, NPT thread are also available to choose.
