AC4000-06
XMC
AC4000-06
| Maxi. Working Pressure: | |
|---|---|
| Ambient & Fluid Temperature: | |
| Filter Precision: | |
| Pressure Regulating Range: | |
| Valve Type: | |
A Series Air Source Treatment Units
▌AC4000-06 Triple-Link Unit (F+R+L)
Symbol
Overall Dimension Drawing (mm)
 | AC1000~2000 |
AC2500~ 5000 |  |
Overall Dimension Sheet (mm)
| Model | Port Size (G) | A | B | C | D | E | F | G | H | J | K | L | P | B (with Auto drain) | |
| AC1000 | M5 | 91 | 91 | 25.5 | 25 | 26 | 25 | 33 | 20 | 4.5 | 7.5 | 5 | 38.5 | None | |
| AC2000 | 1/8~1/4 | 140 | 122 | 38 | 40 | 57 | 30 | 50 | 24 | 5.5 | 8.5 | 5 | 50 | 145 | *160 |
| AC2500 | 1/4~3/8 | 181 | 158 | 38 | 53 | 61 | 41 | 64 | 35 | 7 | 11 | 7 | 70.5 | 172 | |
| AC3000 | 1/4~3/8 | 181 | 158 | 38 | 53 | 61 | 41 | 64 | 35 | 7 | 11 | 7 | 70.5 | 172 | |
| AC4000 | 3/8~1/2 | 238 | 191 | 41 | 70 | 66 | 50 | 84 | 40 | 9 | 13 | 7 | 88 | 196 | |
| AC4000-06 | 3/4 | 253 | 191 | 40.5 | 70 | 70 | 50 | 89 | 40 | 9 | 13 | 7 | 88 | 196 | |
| AC5000 | 3/4~1 | 300 | 268 | 48 | 90 | 76 | 70 | 105 | 50 | 12 | 16 | 10.5 | 115 | 273 | |
*This size is for lever type auto drain.

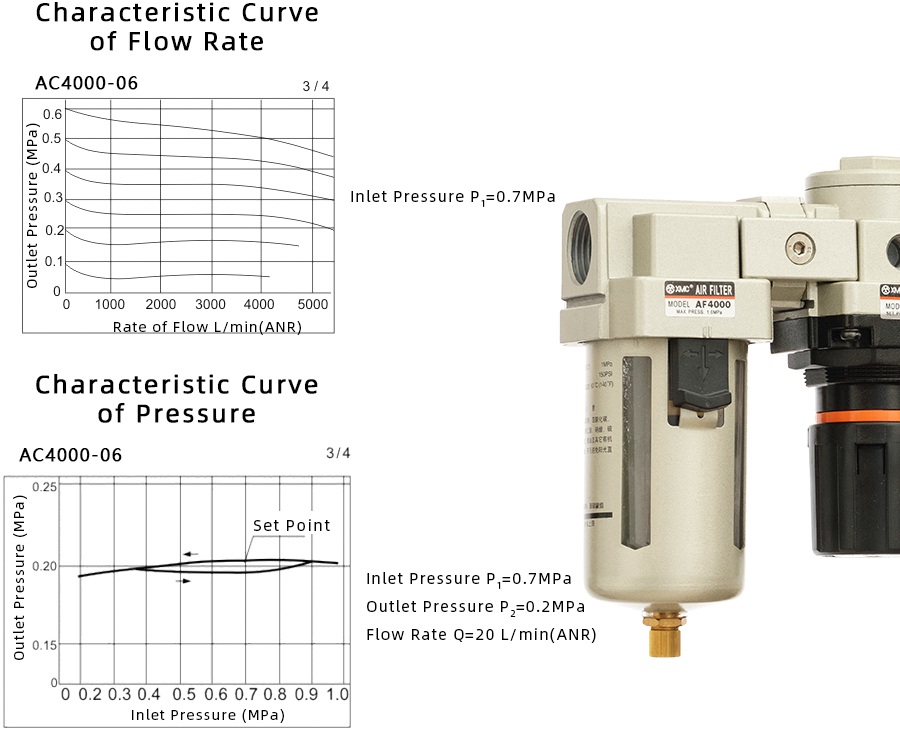

Features
A series of components including air filter, pressure reducing valve, oil mist and its combination components, The interface thread from M5 to G1, the reasonable structure of components to improve its performance, suitable for a variety of small, medium and large pneumatic system devices, can replace Japanese type's pneumatic components products.
Specification
| Order No. | AC4000-06 |
| Ensured Pressure Resistance | 1.5MPa (15kgf/cm2) |
| Maximum Working Pressure | 1.0MPa (10kgf/cm2) |
| Ambient and Fluid Temperature | 5~60℃ |
| *Filter Precision | 25μm |
| Recommended Oil Use | Turbine No.1 Oil ISOVG32 |
| Container Material | Polycarbonate |
| Protective Cover | AC1000~2000: None AC2500~5000: Available |
| Pressure Regulating Range | AC1000: 0.05~0.7MPa (0.5~7kgf/cm2) AC2000~5000: 0.05~0.85MPa (0.5~8.5kgf/cm2) |
| Valve Type | With Overflow |
*5, 50μm is available for optional.
Model Table
| Model | Specifications | Accessories | ||||||||
| Assembly | Note2) Rated Flow (L/min) | Note3) Port Size (G) | Pressure Gauge Size | Weight (kg) | Bracket | Pressure Gauge | ||||
Manual Drain | Note1) Auto Drain | Filter | Regulator | Lubricator | ||||||
| AC1000-M5 | None | AF1000 | AR1000 | AL1000 | 90 | M5 | 1/16 | 0.26 | Y10L | G27-10-R1 |
| AC2000-01 | AC2000-01D | AF2000 | AR2000 | AL2000 | 500 | 1/8 | 1/8 | 0.74 | Y20L | G36-10-01 |
| AC2000-02 | AC2000-02D | 1/4 | ||||||||
| AC2500-02 | AC2500-02D | AF3000 | AR2500 | AL3000 | 1500 | 1/4 | 1/8 | 1.04 | Y30L | |
| AC2500-03 | AC2500-03D | 3/8 | ||||||||
| AC3000-02 | AC3000-02D | AF3000 | AR3000 | AL3000 | 2000 | 1/4 | 1/8 | 1.18 | Y30L | |
| AC3000-03 | AC3000-03D | 3/8 | ||||||||
| AC4000-03 | AC4000-03D | AF4000 | AR4000 | AL4000 | 4000 | 3/8 | 1/4 | 2.14 | Y40L | G46-10-02 |
| AC4000-04 | AC4000-04D | 1/2 | ||||||||
| AC4000-06 | AC4000-06D | AF4000-06 | AR4000-06 | AL4000-06 | 4500 | 3/4 | 1/4 | 2.47 | Y50L | |
| AC5000-06 | AC5000-06D | AF5000 | AR5000 | AL5000 | 5000 | 3/4 | 1/4 | 3.82 | Y50L | |
| AC5000-10 | AC5000-10D | 1 | ||||||||
Note1) Tere are 2 types of auto drain for AC2000, pulsed type and lever type: "D" Means normal auto drain, pulsed type; "D2"means lever type.
The normal auto drain for AC2500~AC5000 is lever type, but the float type of auto drain is available for choose. Please check the details from
AUTO DRAIN webpage, which is classified in Accessories.
Note2) The inlet pressure is 0.7MPa (7.1kgf/cm2), the set pressure is 0.5MPa (5.1kgf/cm2).
Note3) Rc, NPT thread are also available to choose.
