XFRL4_Air Triple-Link Unit (3 Combination Unit, F+R+L)_X Series Air Source Treatment Units_XMC (HUAYI) Pneumatic

1.This series include air filter, pressure regulator, lubricator and their combinations.
2.The joint screw is G 1/4.
3.The components are light in structure and especially suitable for small pneumatic devices, e.g. Dental devices; Oxygen generator.
  • XFRL4

  • XMC

  • XFRL4

Filter Precision:
Pressure Regulating Range:
Weight:
Ambient Temperature:
Maxi. Working Pressure:
Availability:

001 900宽EN-A产品信息条


X Series Air Source Treatment Units

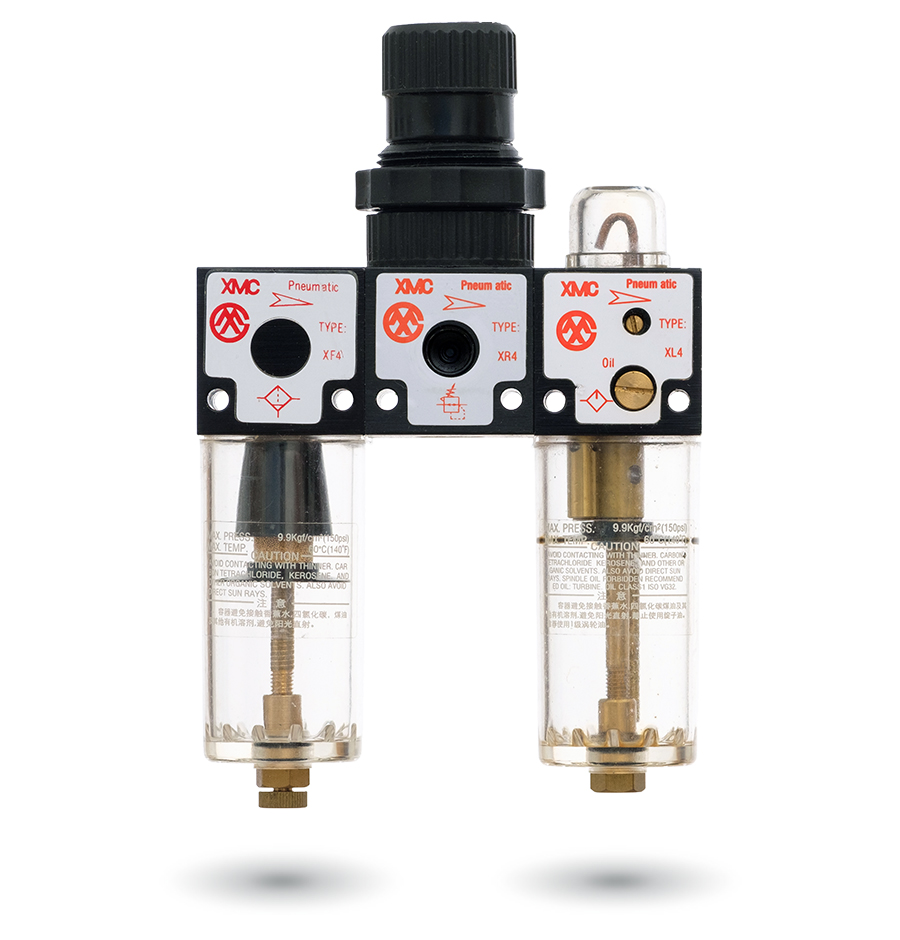

XFRL4 Triple-Link Unit (F+R+L)

Symbol       符号(二联件)-样本page006

00 XFRL4展示主图-官网详情900宽

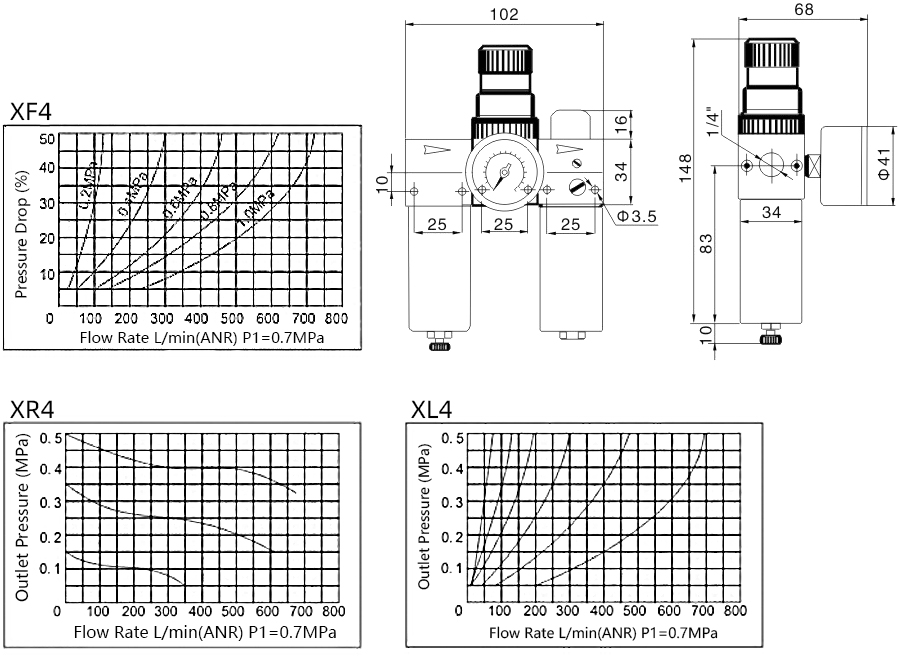

 Characteristic Curve of Flow Rate                          Overall Dimension Drawing(mm)


1 XFRL4-流量曲线和尺寸图EN


Features

1.This series include air filter, pressure regulator, lubricator and their combinations.

2.The joint screw is G 1/4.

3.The components are light in structure and especially  suitable for small pneumatic devices, e.g. Dental devices,  Oxygen generator.


Specification

Order No. XFRL4
Filter Precision

50μm

Pressure Regulating Range

0.05~0.25Mpa

0.05~0.63MPa

Mean Particle Size of Oil Mist <50μm
Weight 0.435kg
Ambient Temperature 5~60℃
Maximum Working Pressure 1.0MPa


X系列-细节图EN


Model Code

322_订购码表page002EN900宽

X系列集合图EN


 Assembly Method                            Assembly Method of Double-Link Unit

Note:

A - Needle adjusting valve. Adjust the amount of oil spray.


B - Oil filling hole bolt. When oil refueling, firstly cut off the air source. And then screw B out, filling the oil to the required height. After refueling, screw B on to ensure the sealing.


C - Pressure regulating handwheel.When adjusting the pressure, lift C up to the adjusting position vertically, turn C to adjust the required pressure, then press down vertically, lock the handwheel C, and keep the pressure stable.

XFRU4+XL4

709_00样本说明-X系列page004-二联件连接方式


 Assembly Method of Triple-Link Unit

XF4+XR4+XL4

502_00样本说明-X系列page004-三联件连接方式


 Structural Diagram

824_00样本说明-X系列page004-结构简图EN


 Accessories

00样本说明-X系列page004-附件EN
