1.This series include air filter, pressure regulator, lubricator and their combinations.
2.The joint screw is G 1/4.
3.The components are light in structure and especially suitable for small pneumatic devices, e.g. Dental devices; Oxygen generator.
|Pressure Regulating Range:|
|Maxi. Working Pressure:|
X Series Air Source Treatment Units

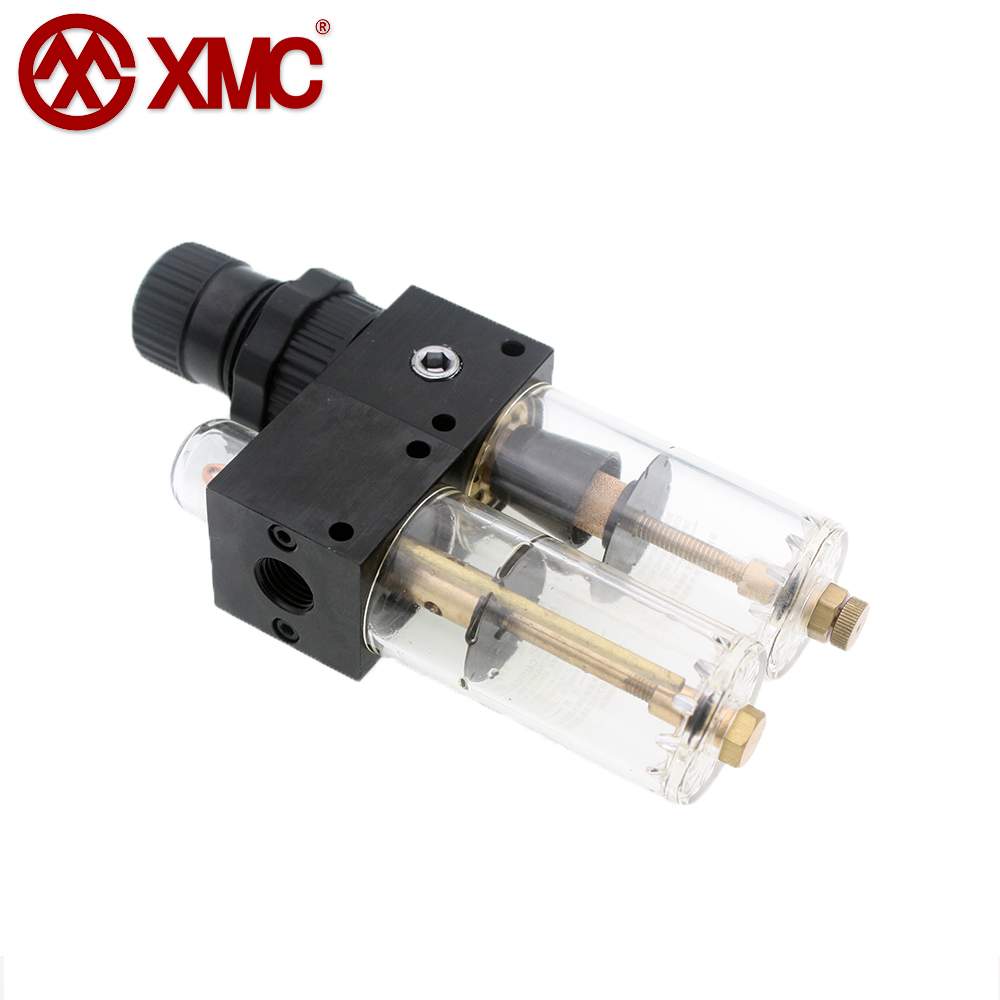

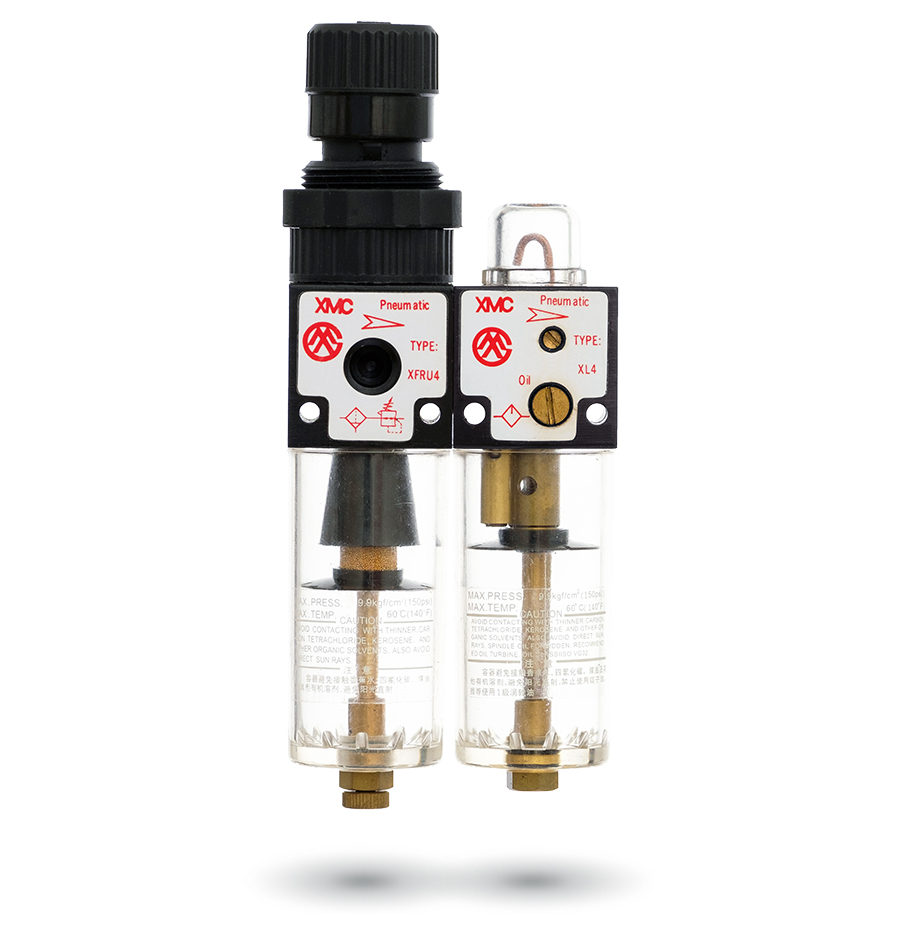

▌XFRUL4 Double-Link Unit (FR+L)

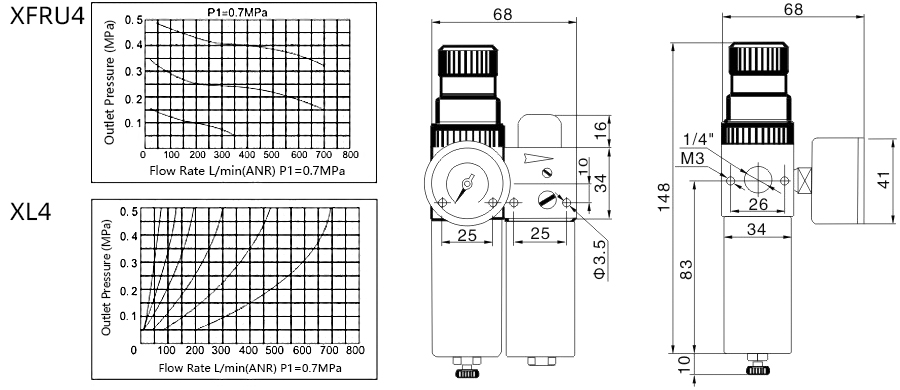

Characteristic Curve of Flow Rate Overall Dimension Drawing(mm)
|Filter Precision|| |
|Pressure Regulating Range || |
|Mean Particle Size of Oil Mist||＜50μm|
|Maximum Working Pressure||1.0MPa|
♦ Assembly Method ♦ Assembly Method of Double-Link Unit
A - Needle adjusting valve. Adjust the amount of oil spray.
B - Oil filling hole bolt. When oil refueling, firstly cut off the air source. And then screw B out, filling the oil to the required height. After refueling, screw B on to ensure the sealing.
C - Pressure regulating handwheel.When adjusting the pressure, lift C up to the adjusting position vertically, turn C to adjust the required pressure, then press down vertically, lock the handwheel C, and keep the pressure stable.
♦ Assembly Method of Triple-Link Unit
♦ Structural Diagram
