XL4
XMC
XL4
| Mean particle size of Oil mist: | |
|---|---|
| Weight: | |
| Ambient Temperature: | |
| Maxi. Working Pressure: | |
X Series Air Source Treatment Units
▌XL4 Air Lubricator
Symbol

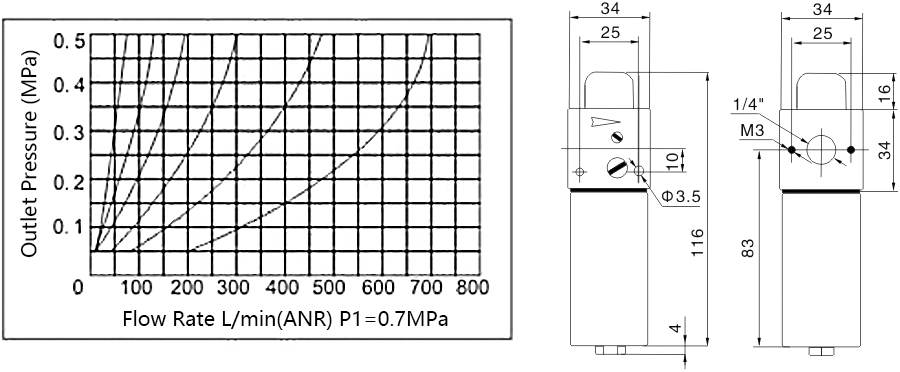

Characteristic Curve of Flow Rate Overall Dimension Drawing(mm)
Features
1.This series include air filter, pressure regulator, lubricator and their combinations.
2.The joint screw is G 1/4.
3.The components are light in structure and especially suitable for small pneumatic devices, e.g. Dental devices, Oxygen generator.
Specification
| Order No. | XL4 |
| Mean particle size of Oil mist | ＜50μm |
| Weight | 0.15kg |
| Ambient Temperature | 5~60℃ |
| Maximum Working Pressure | 1.0MPa |
Model Code
♦ Assembly Method ♦ Assembly Method of Double-Link Unit
Note: A - Needle adjusting valve. Adjust the amount of oil spray. B - Oil filling hole bolt. When oil refueling, firstly cut off the air source. And then screw B out, filling the oil to the required height. After refueling, screw B on to ensure the sealing. C - Pressure regulating handwheel.When adjusting the pressure, lift C up to the adjusting position vertically, turn C to adjust the required pressure, then press down vertically, lock the handwheel C, and keep the pressure stable. | XFRU4+XL4
|
♦ Assembly Method of Triple-Link Unit
XF4+XR4+XL4
|
♦ Structural Diagram
♦ Accessories
